CircleProbe Precision Flex

Name: CircleProbe Precision Flex
Brand: IngegnoTech
SKU: ITCPPFKIT
Price: 80.9 EUR
Availability: InStock
Rating: 5.0 (1 reviews)

5.0

1 review

80,90 €

Bulk pricing available for quantities of 2 units or more

Estimated delivery time

Shipping: 8–16 days

In stock

Quantity:

Buy more, save more

Quantity	Price per item	Discount
2 items	74,90 €	7% off
4 items	68,90 €	15% off

Save this product for later

Customer reviews

Reviews only from verified customers

Reviews are only accepted from verified customers who have signed in and purchased the products. This ensures that each review is based on genuine customer experiences. All reviews are checked before publication to prevent spam.

Vishal M.

Vitry-sur-Seine,

France

27/11/2024

This customer didn’t leave a review but rated the product.

Show review

CircleProbe Precision Flex

Product Details

CircleProbe: The Modular Evolution of Electronic Analysis

Bigger, More Flexible, Fully Scalable

CircleProbe sets the new standard for those who refuse to compromise between precision and scale. Born from the experience of the acclaimed HexaProbe, this tool introduces a unique modular structure designed to adapt instantly—from small prototype boards to the most complex and bulky PCBs.

The Heart: The "X" Element

At the core of the system is a high-strength, X-shaped central element. On its own, it can host boards up to 19.8 cm wide while maintaining a minimal footprint on your workbench. With 8 strategically placed mounting holes at the ends of the X-arms, it is ready for complex measurement setups right out of the box.

Limitless Expansion

CircleProbe grows with your needs thanks to its precision male-female interlocking joints:

"Circle Close" Configuration: Using the 4 included arc segments, the X-base transforms into a perfect circle, increasing the number of probe arm mounting points to 12.
"Extreme" Configuration: The dual concentric arc extensions expand the tool to a total diameter of 32 cm. These extensions feature additional radial slots, allowing you to securely lock massive boards up to 23,6 cm wide.

Base Comparison: HexaProbe vs. CircleProbe

Choose the base that best fits your typical workflow:

Feature	HexaProbe	CircleProbe (Modular System)
Design	Monolithic Hexagon	Modular Interlocking (X-Base + Arcs)
Max Board Width	15.6 cm	Up to 23.6 cm
Probe Mounting Holes	18 (Fixed)	From 8 to 12+ (Expandable)
Max Footprint	~20 cm	32 cm (Extended Configuration)
Versatility	High (Standard)	Maximum (Scalable)
Materials	Tech Filament + Resin	Tech Filament + ABS-like Resin

The Three Precision Variants

Just like the Hexa line, CircleProbe is available in three specific variants to meet every electrical contact need:

Variant	Probe Type	Tip Ø	Travel	Ideal Use

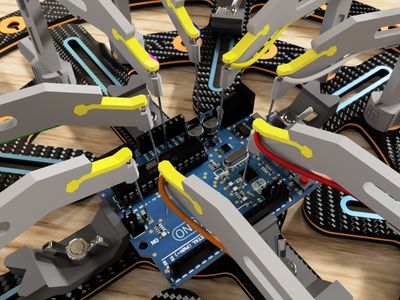

Solid Edge	Rigid Inox Needle	0.8 mm	Fixed	Standard components, THT, and general repairs.
Precision Flex	Acupuncture Needle	0.3 mm	Flexible	Micro-SMD, fine pitch (QFP/QFN), and thin traces.
Constant Contact	Spring Pogo Pin	1.0 mm	6.0 mm	Repetitive Test Points, firmware programming, and pads.

What’s in the Box?

Every CircleProbe kit includes:

Central X-Element (Primary modular base).
Double Set of 4 Arc Connectors (For circular configuration).

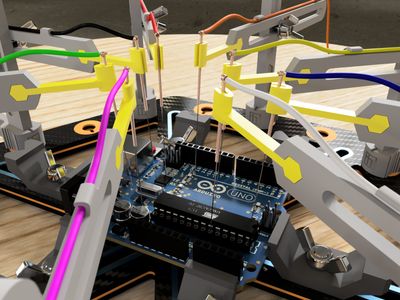

8 Articulated Arms in ABS-like resin with probes of your chosen variant.
55 cm Cables with pre-installed male Dupont connectors.
Stainless Steel Hardware for professional, long-lasting tightening.

Maker Tip: Need more analysis points? The CircleProbe structure is fully compatible with all additional arms from the Probe series, allowing you to populate every available hole for highly complex, multi-channel logic analysis.
